PVC/PE Half Collar

Product number:

OD50-OD200

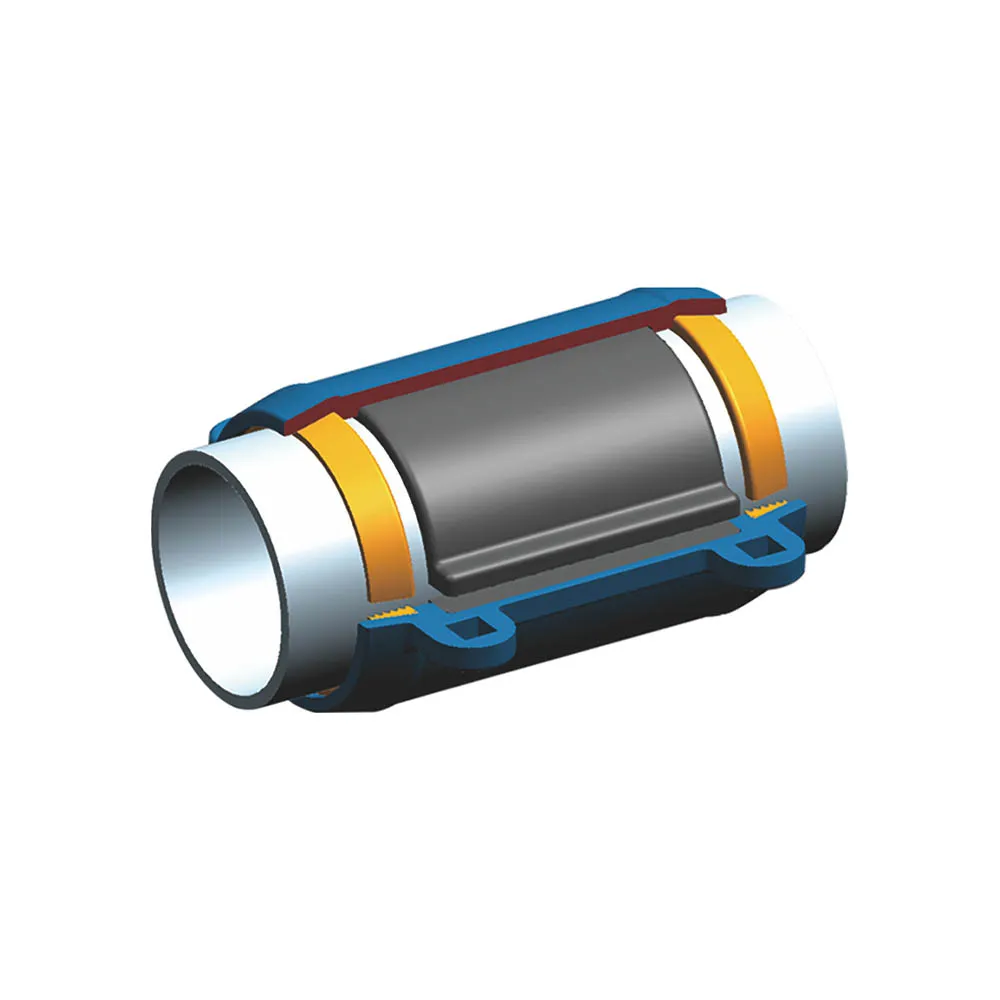

PVC/PE Half Collar quick repair of any pipe breakage and leakage under pressure or no pressure.

Special design is allowable, welcome to contact us.

Chat Now

PVC/PE Half Collar

Product number:

OD50-OD200

PVC/PE Half Collar quick repair of any pipe breakage and leakage under pressure or no pressure.

Special design is allowable, welcome to contact us.

Chat Now

Part No.	Part Name	Material	Standard
1	Backplate	SS304	DIN17224
2、3	Rubber Gasket	EPDM	EN681-1
4	Support Frame	Galvanised Carbon Steel Piping	DIN10100-80
5	Carriage Bolt	Galvanised Carbon Steel Piping	DIN103-7
6	Gasket	SS304	DIN17224
7	Nut	SS304	DIN17225
8	Back Guard Plate	SS304	DIN17226

Briefs & Features
1	Suitable for PE/PVC pipe diameters.
2	Working pressure PN10/PN16.
3	Maximum temperature -10°C to+70°C.
4	Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure.

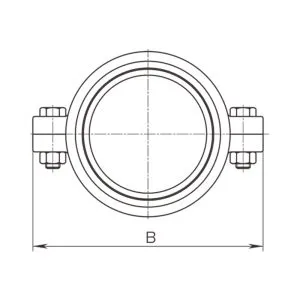

OD	PVC	B	L
50	50	144	164
65	65	156	170
80	80	174	174
100	100	196	195
125	125	214	195
125	125	228	220
150	150	254	245
200	200	308	316
200	200	332	350

1. The main function of this product is to open a branch pipe or install the faucet or water meter in any part of the pipeline temporarily after the completion of the installation of the whole pipeline and already running. Quick removal of the product, the installation of only one wrench, torque wrench to tighten high-strength steel or stainless steel connection bolt is one of the most important features of the series. 2. This product is specially designed for connecting DI pipes. The connect range is from DN50-DN315.The customer has some special requirements for the product that can also be designed and manufactured to meet customer requirements. 3. The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a stressful manner. It eliminates the need to shut down the entire line during the entire product installation without the interruption for pipeline, can bring great convenience to customers. 4. Product design and manufacture according to BS, EN, ISO, 9001:2008 system and surface anti-corrosion material through the most stringent WRAS certification, so it can be used for drinking water. 5. We provide EPDM, SBR, SBR rubber pad and carbon steel/stainless steel bolts for long term rust protection.

1.Check the saddle for damage, if any accessories was lost during transport. 2. Check the diameter and range of the pipe And check the type of model of the saddle, to make sure you use the right products. 3.Thoroughly clean the pipe surface that will use the pipe clip. Suitable gasket lubricant for roughened pipes to ensure that the product is well sealed. 4.Loosen the saddle bolt and bolt to separate the two part of products. 5. Positioning saddle on the pipe, thread outlet is in the correct position. 6.The next two parts of saddle should be alignment bolts holes and tighten the bolts to ensure that the gasket is parallel with the external. 7. Tighten the bolt and tighten the bolt with a wrench as required. The bolt is evenly exchanged with a torque of 15-20 pounds / feet each time.
