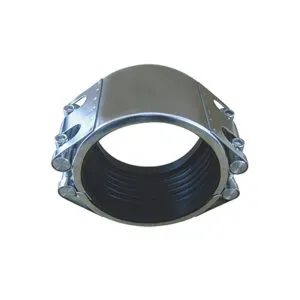

Stainless Steel Connect Repair Clamp FCE

Product number:

OD42-OD1462

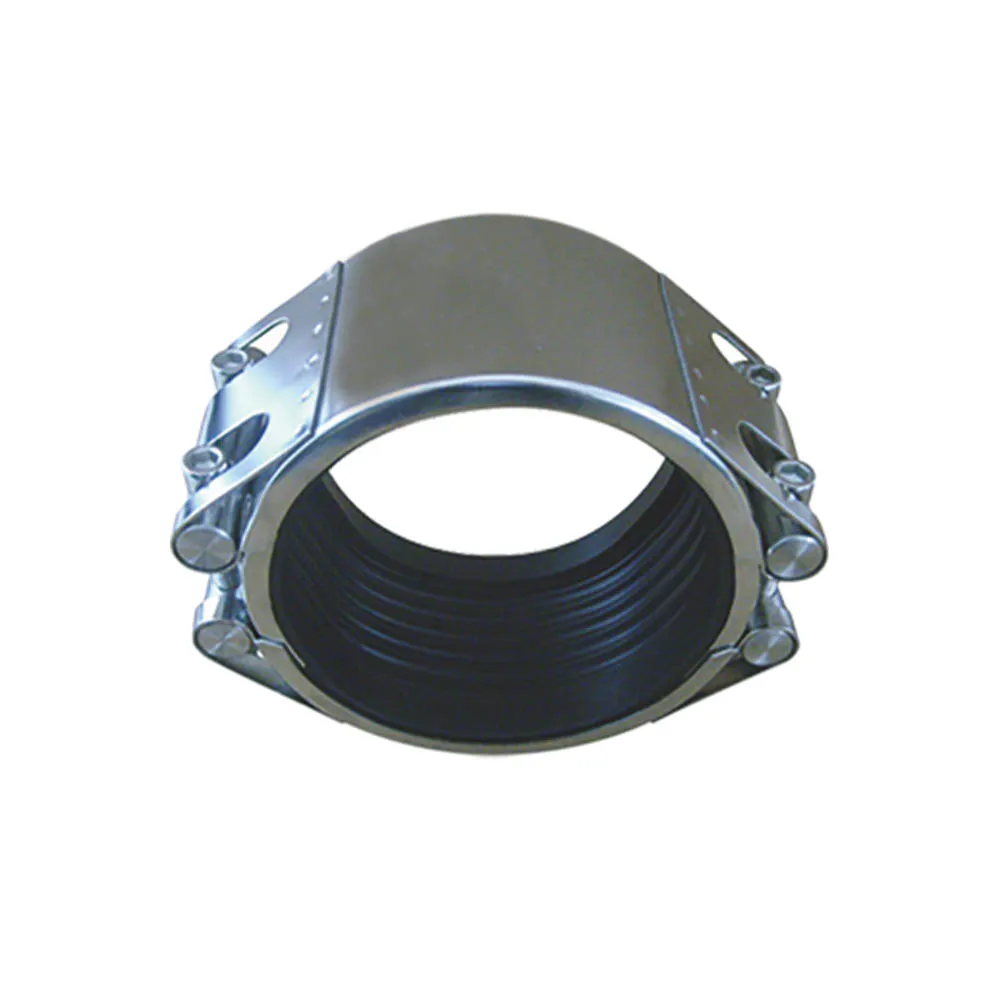

FCE Stainless Steel Repair Clamp are mainly used in the connection of new pipeline leakage can repair the aging and rusting pipeline sand holes and cracks without pressure or pipeline replacement. It is easy to install and has high construction efficiency. It can be constructed without special tools.

Special design is allowable, welcome to contact us.

Chat Now

Stainless Steel Connect Repair Clamp FCE

Product number:

OD42-OD1462

Special design is allowable, welcome to contact us.

Chat Now

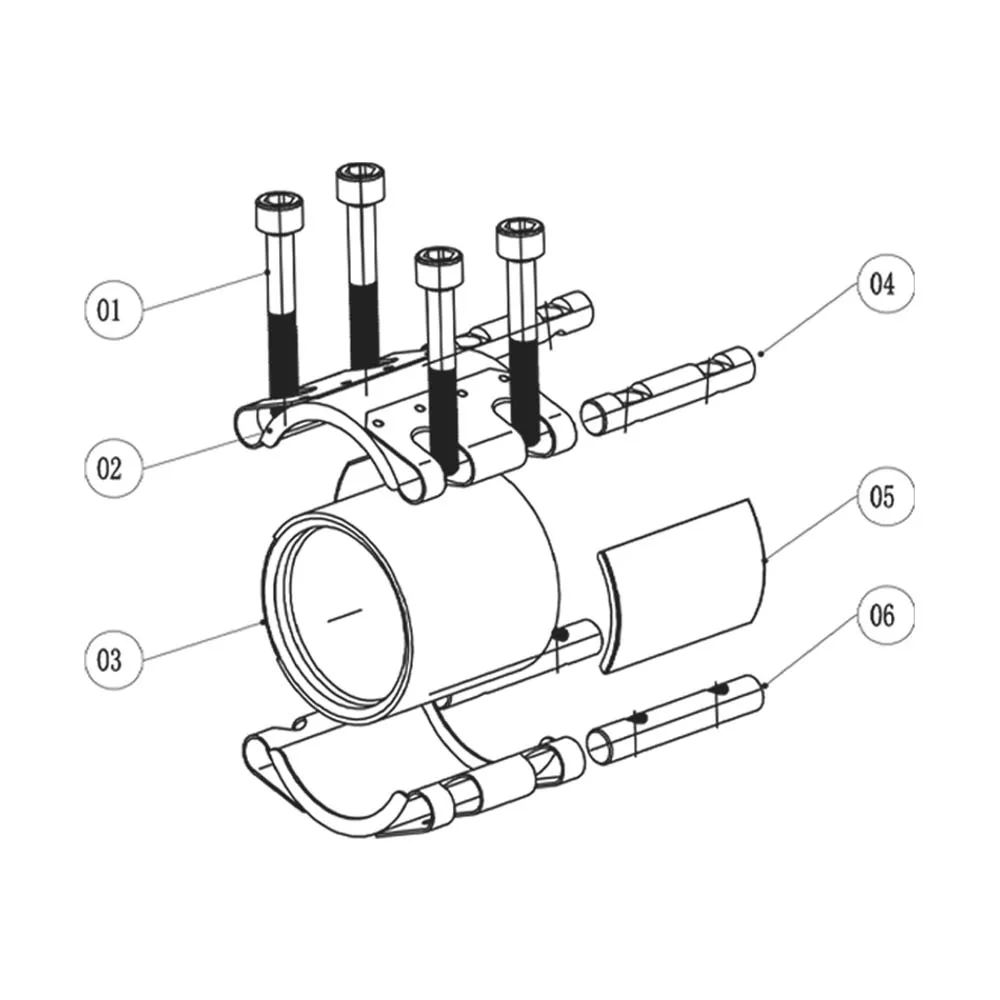

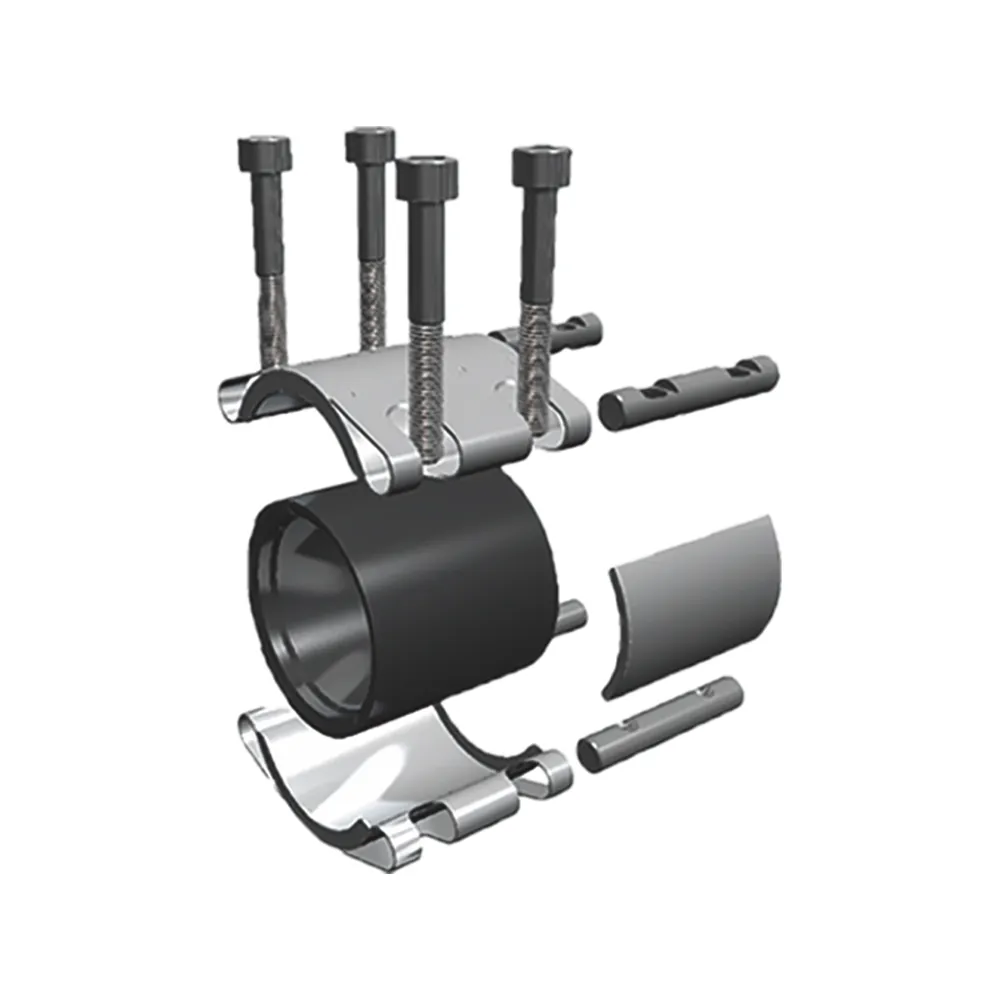

Part No.	Part Name	Material	Standard
1	Backplate	SS304	AS4181-2013
2、3	Bolts&Nuts	SS304	AS4181-2013
4	Rubber Sleeve	EPDM	ISO4633
5	Shell Steel Plate	SS304	AS4181-2013
6	Bolts	SS304	AS4181-2013

Briefs & Features
1	Suitable for steel, iron, plastic pipes, wide range of pipe diameters.
2	Working pressure PN10/PN16.
3	Maximum temperature -10°C to+70°C.
4	Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure.

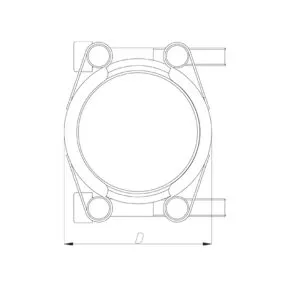

（mm）	ODmin-ODmax(mm)	WP（bar）	A(mm)	L1（mm）	L2（mm）	D （mm）	Bolts(M）	Nm
42	42-44	16	10	57	100	65	6	15
44.5	44-45.1	16	10	57	100	65	6	15
48.6	47-49	16	10	57	100	70	6	15
54	53.6-54.6	16	10	57	100	70	8	30
57	56.3-577	16	10	57	100	80	8	30
60.3	59-62	16	10	80	139	85	8	30
63	62.2-63.9	16	10	80	139	85	8	30
76.1	75-78	16	10	80	139	100	8	30
79.9	78.8-80.8	16	10	80	139	100	8	30
88.9	88-92	16	10	107	203	110	8	30
108	106-110	16	10	107	203	130	8	50
110	108.9-111.2	16	10	107	203	130	10	50
114.3	112-116	16	10	107	203	135	10	50
118	116.6-119.2	16	10	107	203	140	10	50
125	123.6-126.5	16	10	107	203	150	10	50
133	131.5-134.4	16	10	107	203	160	10	50
140	137-143	16	10	116	203	165	10	50
159	157-161	16	10	116	203	185	12	80
165.2	163.3-166.7	16	10	116	203	190	12	80
168	166-170	16	10	116	203	195	12	80
170	168.2-171.9	16	10	116	203	195	12	80
200	198.2-201.5	16	15	155	255	240	14	80
219	217-221	10	15	155	255	250	14	80
250	250-254	10	15	155	255	285	14	100
273	271-275	10	15	155	255	305	14	100
315	313-317	10	15	155	255	340	14	100
325	323-327	10	15	155	255	360	14	100
355.6	354-358	10	15	155	255	385	14	100
377	375-379	10	15	155	255	410	14	100
400	398-402	10	15	155	255	430	14	100
406	404-408	10	15	155	255	435	14	100
426	424-428	10	15	155	255	460	14	100
429	427-431	10	15	155	255	460	14	100
480	478-482	10	15	155	255	510	14	120
500	498-502	10	15	155	255	530	14	120
508	506-510	10	15	155	255	540	14	120
530	528-532	10	15	155	255	565	14	120
558.8	557-561	9	15	155	255	590	14	120
609.6	608-612	8	15	155	255	640	16	120
630	628-632	8	15	155	255	670	16	120
635	633-637	8	15	155	255	675	16	120
711.2	709-713	7	15	155	255	745	16	120
720	718-722	7	15	155	255	760	16	120
738	736-740	7	15	155	255	780	16	120
762	760-764	7	15	155	255	795	16	150
812.8	811-815	6	15	155	255	845	16	150
842	840-844	6	15	155	255	880	16	150
914.4	912-916	5	15	155	255	945	16	150
920	918-922	5	15	155	255	960	16	150
945	943-947	5	15	155	255	985	16	150
1016	1014-1018	4	15	155	255	1050	16	150
1020	1018-1022	4	15	155	255	1060	16	150
1048	1046-1050	4	15	155	255	1090	16	150
1117.6	1116-1120	4	15	155	255	1150	16	150
1120	1118-1122	4	15	155	255	1160	16	150
1152	1150-1154	4	15	155	255	1190	16	150
1219.2	1217-1221	3.5	15	155	255	1250	16	150
1226	1224-1228	3.5	15	155	255	1270	16	150
1255	1253-1257	3.5	15	155	255	1295	16	150
1320.8	1319-1323	3	15	155	255	1350	16	150
1422.4	1420-1424	3	15	155	255	1455	16	150
1462	1460-1464	3	15	155	255	1500	16	150

1. The main function of this product is to open a branch pipe or install the faucet or water meter in any part of the pipeline temporarily after the completion of the installation of the whole pipeline and already running. Quick removal of the product, the installation of only one wrench, torque wrench to tighten high-strength steel or stainless steel connection bolt is one of the most important features of the series. 2. This product is specially designed for connecting DI pipes. The connect range is from DN50-DN315.The customer has some special requirements for the product that can also be designed and manufactured to meet customer requirements. 3. The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a stressful manner. It eliminates the need to shut down the entire line during the entire product installation without the interruption for pipeline, can bring great convenience to customers. 4. Product design and manufacture according to BS, EN, ISO, 9001:2008 system and surface anti-corrosion material through the most stringent WRAS certification, so it can be used for drinking water. 5. We provide EPDM, SBR, SBR rubber pad and carbon steel/stainless steel bolts for long term rust protection.

1.Prepare for the patch device installation. 2.Draw the length of the repair device on both sides of the leak point, and try to center the leak point. 3.Insert the rubber sleeve so that the leak point is centered. 4.Symmetrically mount the guard plate, the shell steel plate, and the bolts. 5.Tighten the bolts evenly until the leakage stops. 6.Installation complete.
