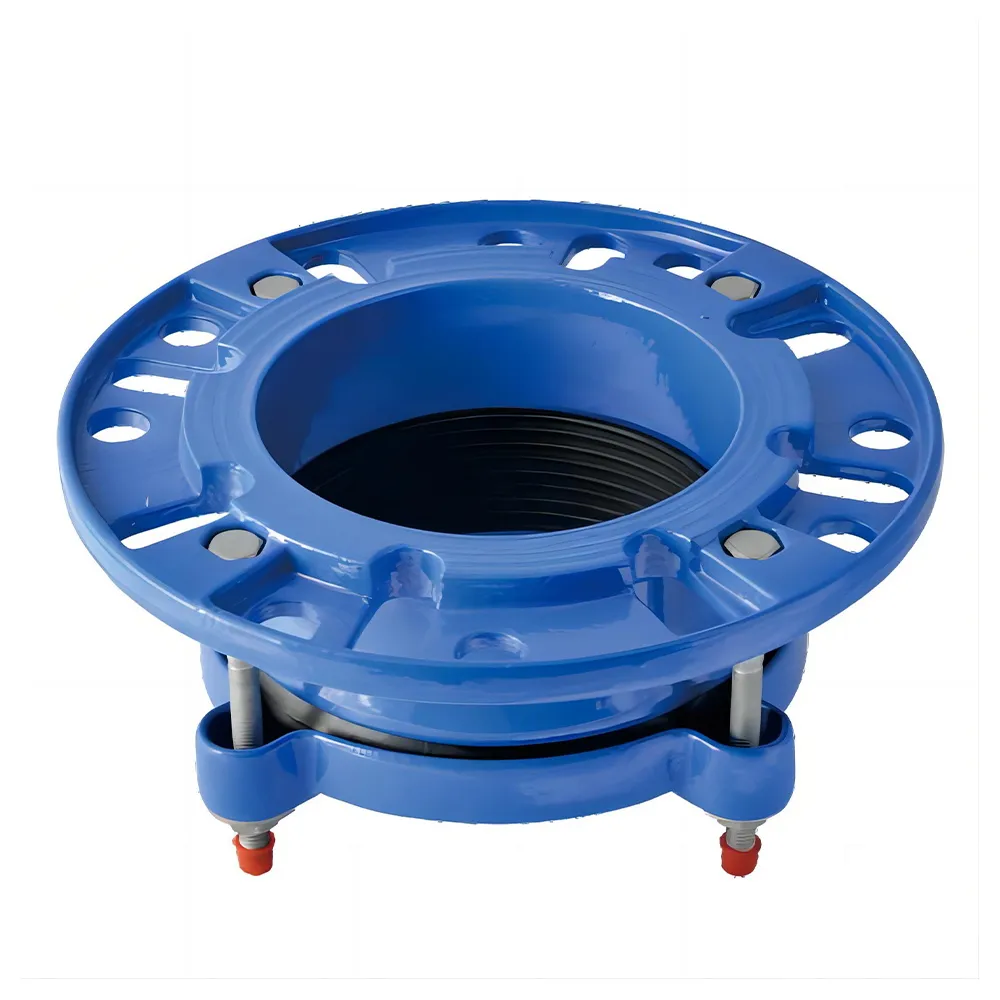

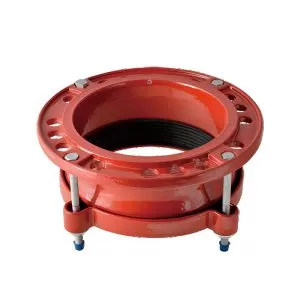

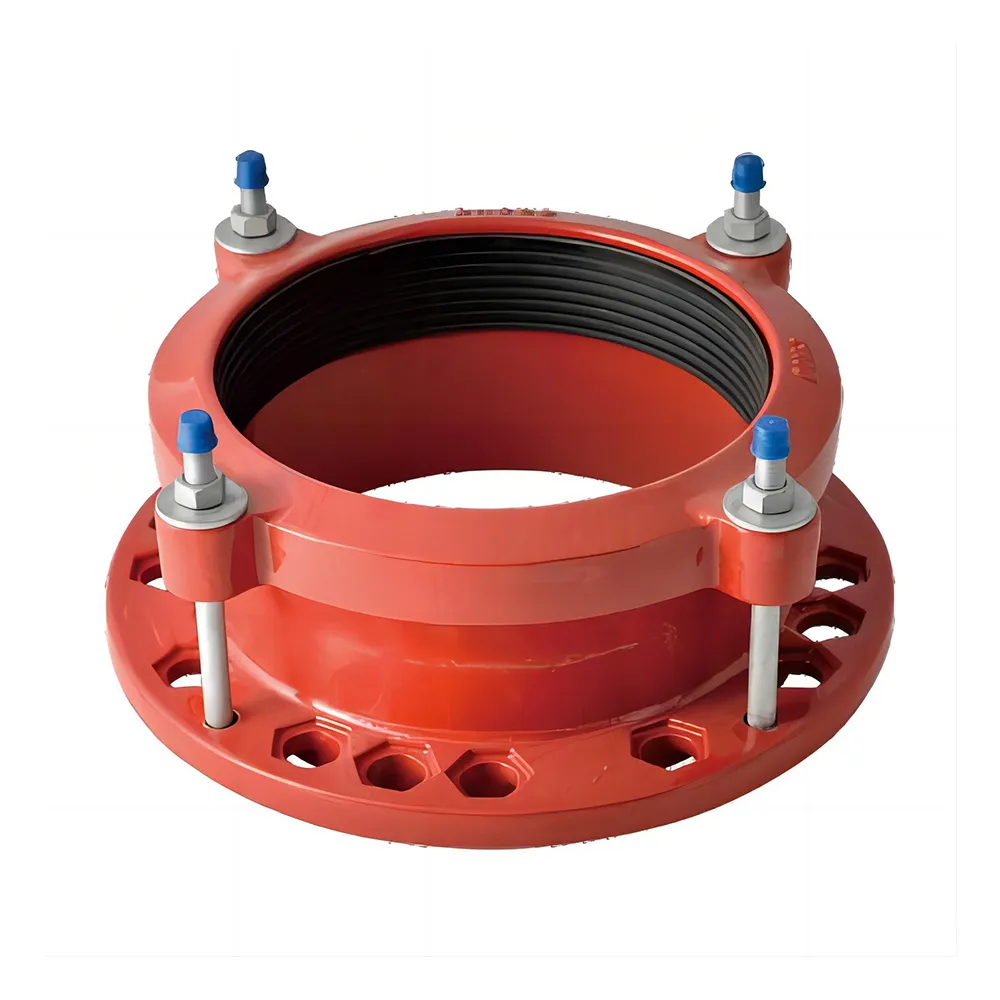

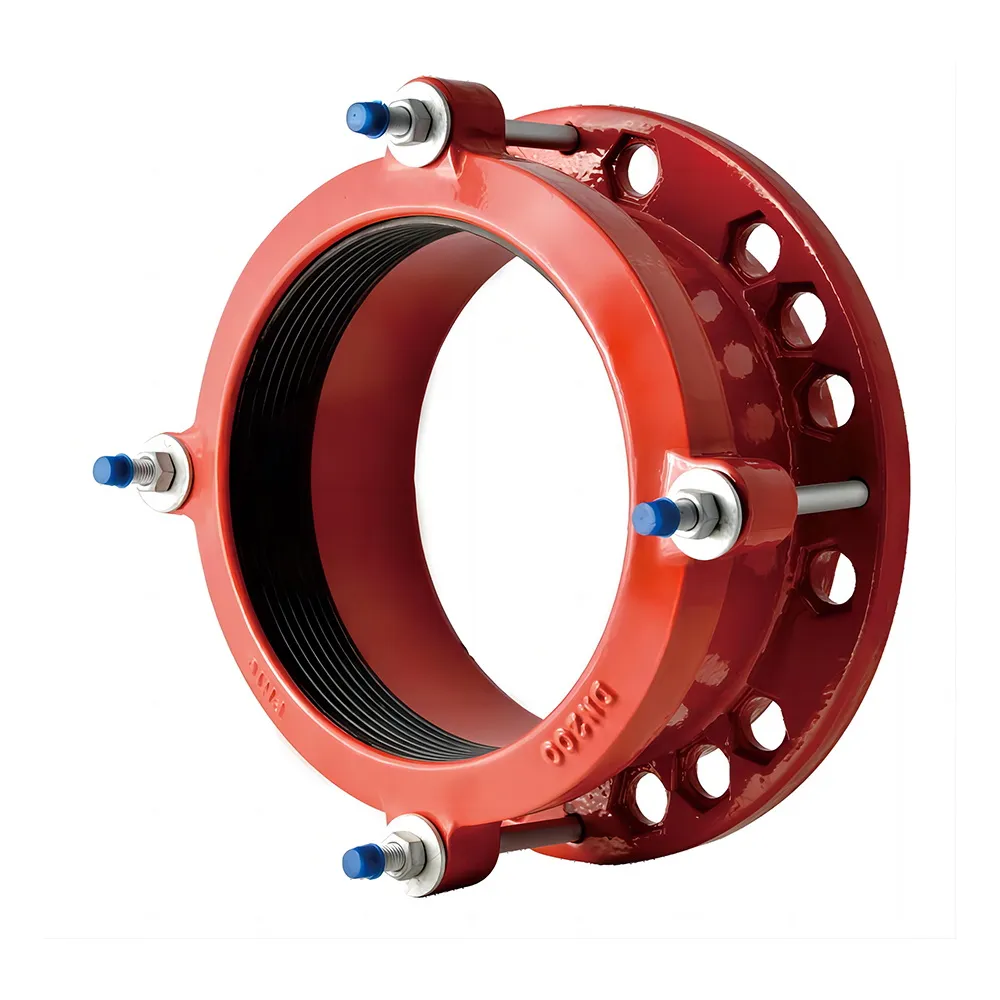

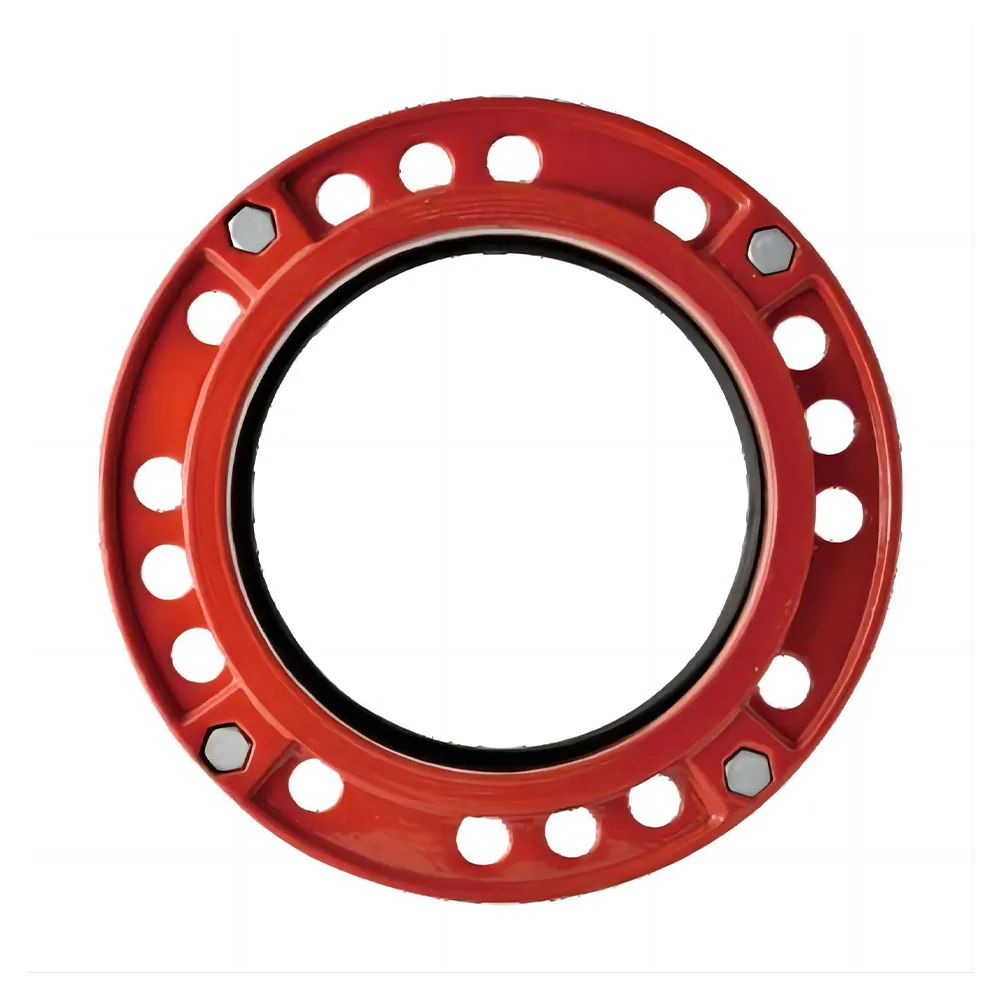

Universal flange adaptor represents the latest mechanical coupling technology for connecting a variety diameter pipe to save the installation time, install easily and remove conveniently. It is suitable for pipeline which one end is flange and the other end is socket.
Special design is allowable, welcome to contact us.
Universal flange adaptor represents the latest mechanical coupling technology for connecting a variety diameter pipe to save the installation time, install easily and remove conveniently. It is suitable for pipeline which one end is flange and the other end is socket.
Special design is allowable, welcome to contact us.

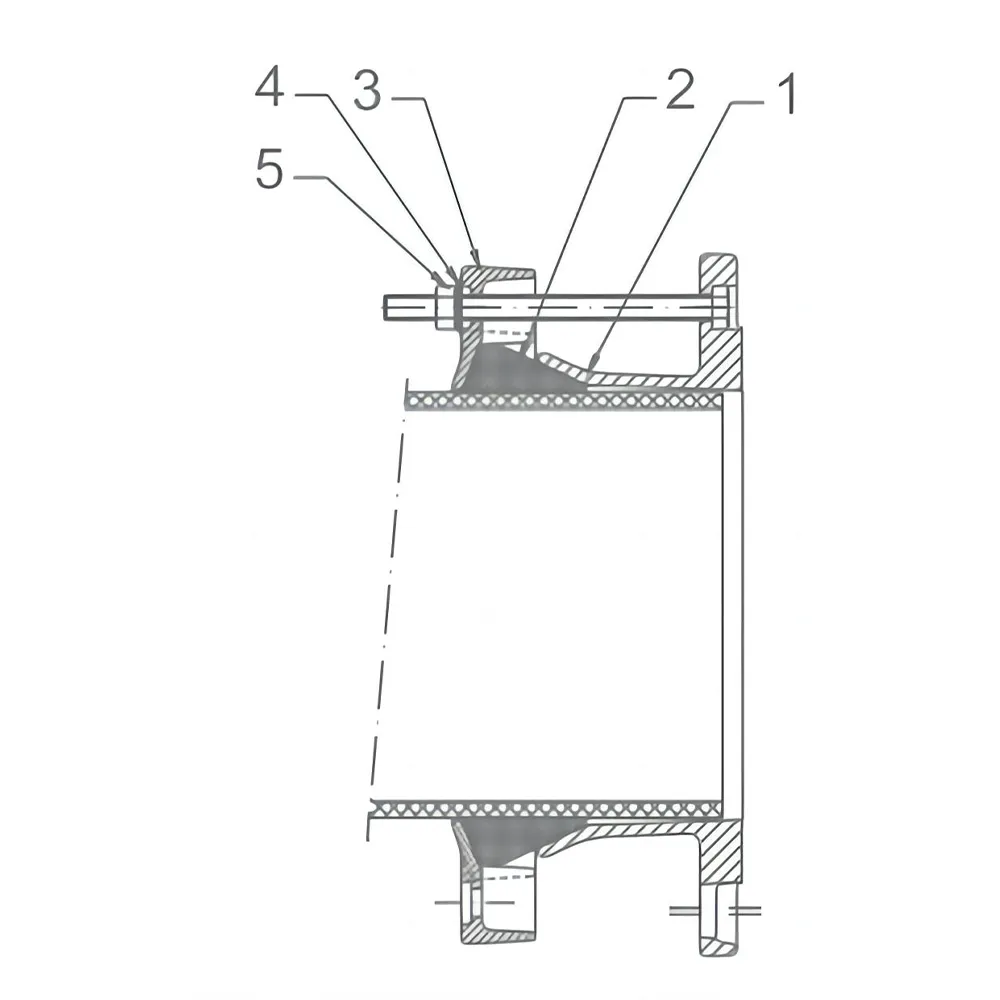

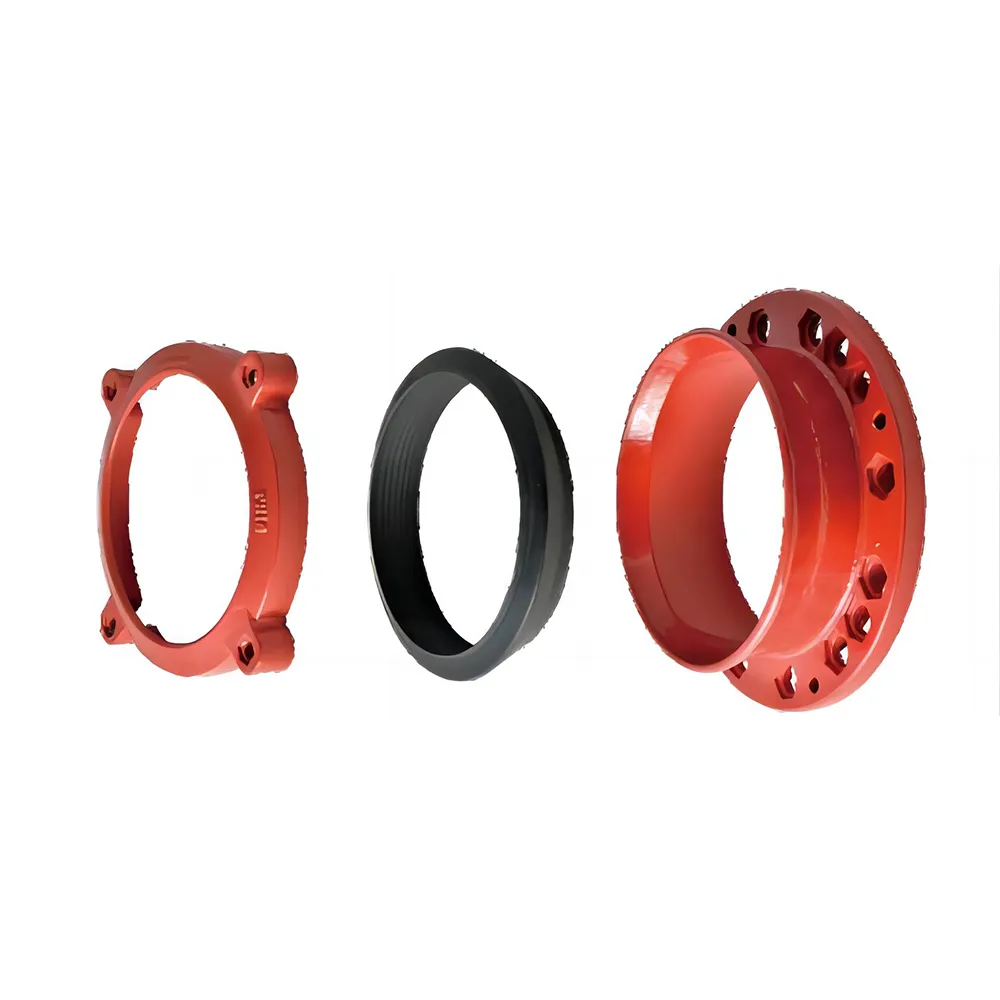

| Part No. | Part Name | Material | Standard |
| 1 | Flange Pipe | GGG50 | EN1563 |
| 2 | Rubber Gasket | EPDM/SBR/NBR | ISO4633 |
| 3 | Gland Flange | GGG50 | EN1563 |
| 4 | Bolts&Nuts | Carbon Steel 6.8/8.8, SS, Dacromet | ISO898 |
| 5 | Finish Layer | Fusion Bond Epoxy etc. | EN14901 |
| Briefs & Features | |
| 1 | Suitable for steel, iron, plastic pipes, wide range of pipe diameters. |
| 2 | Working pressure PN10/PN16/PN25. |
| 3 | Maximum temperature -10°C to+70°C. |
| 4 | Suitable for potable water (WRAS approved), neutral liquids and sewage. Corrosion resistant structure. |
| 5 | Total angle deviation is +/- 6 degree. |
| Complying Standard | |
|
Flange drilling |
EN1092-2, EN1092-1, ANSI |
| Coating | EN30677 |
| Test | EN12266-1 |
 |
 |
 |

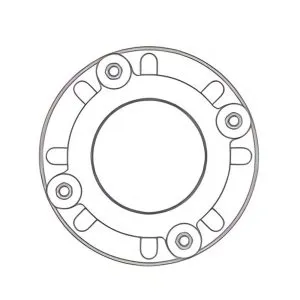

Universal Flange Adaptor

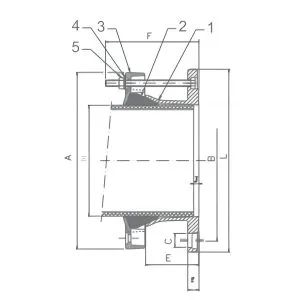

| No. | PN | REF | REF | D1(min) | D1(max) | L | f | B | C | E | F | A | J (min) |
J (max) |
BOLTS |
| F00-A | 16 | 40/50 | 1.5”-2” | 47 | 60 | 155 | 16 | 100/125 | 19 | 75 | 140 | 169 | 10 | 45 | M12*130-90 |
| F00 | 16 | 50/65 | 2”-2 1/2” | 57 | 72 | 194 | 19 | 114/147 | 19 | 85 | 140 | 195 | 10 | 55 | M12*130-90 |
| F01 | 16 | DN65 | 2 1/2” | 68 | 85 | 207 | 19 | 125/160 | 19 | 85 | 140 | 207 | 15 | 55 | M12*130-90 |
| F02 | 16 | DN80/100 | 3” | 84 | 106 | 224 | 19 | 146/190 | 19 | 85 | 140 | 224 | 10 | 55 | M12*130-90 |
| F03 | 16 | DN100/125 | 4” | 103 | 116 | 250 | 21 | 178/216 | 19 | 85 | 140 | 250 | 10 | 55 | M12*130-90 |
| F04 | 16 | DN100/125 | 4” | 108 | 130 | 250 | 21 | 178-216 | 19 | 85 | 150 | 250 | 10 | 55 | M12*140-90 |
| F05 | 16 | DN125/150 | 5” | 28 | 146 | 286 | 21 | 210/242 | 22 | 85 | 150 | 276 | 10 | 55 | M12*140-90 |
| F06 | 16 | DN125/150 | 5” | 134 | 154 | 286 | 21 | 210/242 | 22 | 85 | 150 | 276 | 10 | 55 | M12*140-90 |
| F07 | 16 | DN150/175/200 | 6”-7”-8” | 153 | 175 | 340 | 21 | 237/298 | 23 | 85 | 150 | 304 | 10 | 55 | M12*140-90 |
| F08 | 16 | DN150/175/200 | 6”-7”-8” | 165 | 185 | 340 | 21 | 237-298 | 23 | 85 | 150 | 304 | 10 | 55 | M12*140-90 |
| F09 | 16 | DN200 | 8” | 184 | 207 | 342 | 21 | 290-301 | 23 | 100 | 170 | 330 | 10 | 70 | M12*160-90 |
| F10 | 16 | DN200 | 8” | 208 | 225 | 348 | 21 | 295-301 | 23 | 100 | 170 | 348 | 10 | 70 | M12*160-90 |
| F10-A | 16 | DN200 | 8” | 218 | 236 | 348 | 23 | 295 | 23 | 100 | 170 | 359 | 15 | 70 | M12*160-90 |
| F11 | 16 | DN200 | 8” | 222 | 250 | 370 | 23 | 295 | 23 | 100 | 170 | 373 | 28 | 70 | M12*160-90 |
| F11-A | 16 | DN250 | 10” | 246 | 270 | 406 | 22 | 350/364 | 27 | 110 | 170 | 394 | 10 | 80 | M12*160-90 |
| F12 | 16 | DN250 | 10” | 264 | 284 | 406 | 22 | 350-364 | 27 | 100 | 170 | 407 | 10 | 70 | M12*160-90 |
| F12-A | 16 | DN250 | 10” | 282 | 306 | 435 | 22 | 355 | 26 | 111 | 190 | 433 | 28 | 80 | M12*180-90 |
| F13 | 16 | DN300 | 12” | 305 | 326 | 482 | 24 | 400/434 | 27 | 100 | 170 | 459 | 10 | 70 | M12*160-90 |
| F13-A | 16 | DN300 | 12” | 315 | 335 | 482 | 24 | 400-434 | 27 | 110 | 170 | 463 | 10 | 80 | M12*160-90 |
| F13-B | 16 | DN300 | 12” | 334 | 355 | 482 | 24 | 405/440 | 27 | 185 | 260 | 483 | 83 | 155 | M12*250-130 |
| F14 | 16 | DN350 | 14” | 360 | 386 | 533 | 24 | 460-479 | 27 | 100 | 190 | 510 | 10 | 70 | M12*180-90 |
| F14-A | 16 | DN400 | 16” | 386 | 410 | 596 | 24 | 515/542 | 30 | 100 | 190 | 559 | 10 | 80 | M12*180-90 |
| F15 | 16 | DN400 | 16” | 408 | 435 | 596 | 24 | 515-542 | 30 | 100 | 190 | 559 | 10 | 70 | M12*180-90 |
If above DN400 pls consult by email.
